By the end of this section, you will be able to:
- Identify the neoclassical zone, the intermediate zone, and the Keynesian zone in the aggregate demand/aggregate supply model
- Use an aggregate demand/aggregate supply model as a diagnostic test to understand the current state of the economy

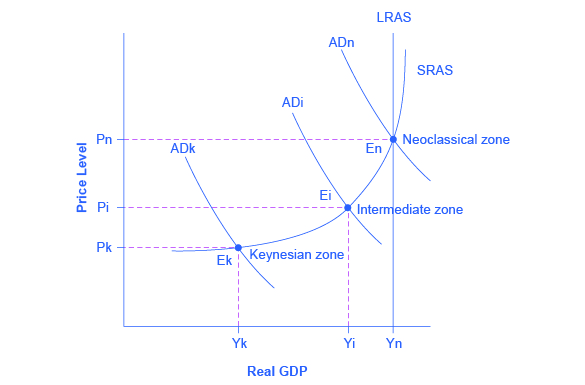

The AD/AS model can be used to illustrate both Say’s law that supply creates its own demand and Keynes’ law that demand creates its own supply. Consider the three zones of the SRAS curve as identified in [link]: the Keynesian zone, the neoclassical zone, and the intermediate zone.
Focus first on the Keynesian zone, that portion of the SRAS curve on the far left which is relatively flat. If the AD curve crosses this portion of the SRAS curve at an equilibrium point like Ek, then certain statements about the economic situation will follow. In the Keynesian zone, the equilibrium level of real GDP is far below potential GDP, the economy is in recession, and cyclical unemployment is high. If aggregate demand shifted to the right or left in the Keynesian zone, it will determine the resulting level of output (and thus unemployment). However, inflationary price pressure is not much of a worry in the Keynesian zone, since the price level does not vary much in this zone.
Now, focus your attention on the neoclassical zone of the SRAS curve, which is the near-vertical portion on the right-hand side. If the AD curve crosses this portion of the SRAS curve at an equilibrium point like En where output is at or near potential GDP, then the size of potential GDP pretty much determines the level of output in the economy. Since the equilibrium is near potential GDP, cyclical unemployment is low in this economy, although structural unemployment may remain an issue. In the neoclassical zone, shifts of aggregate demand to the right or the left have little effect on the level of output or employment. The only way to increase the size of the real GDP in the neoclassical zone is for AS to shift to the right. However, shifts in AD in the neoclassical zone will create pressures to change the price level.
Finally, consider the intermediate zone of the SRAS curve in [link]. If the AD curve crosses this portion of the SRAS curve at an equilibrium point like Ei, then we might expect unemployment and inflation to move in opposing directions. For instance, a shift of AD to the right will move output closer to potential GDP and thus reduce unemployment, but will also lead to a higher price level and upward pressure on inflation. Conversely, a shift of AD to the left will move output further from potential GDP and raise unemployment, but will also lead to a lower price level and downward pressure on inflation.
This approach of dividing the SRAS curve into different zones works as a diagnostic test that can be applied to an economy, like a doctor checking a patient for symptoms. First, figure out what zone the economy is in and then the economic issues, tradeoffs, and policy choices will be clarified. Some economists believe that the economy is strongly predisposed to be in one zone or another. Thus, hard-line Keynesian economists believe that the economies are in the Keynesian zone most of the time, and so they view the neoclassical zone as a theoretical abstraction. Conversely, hard-line neoclassical economists argue that economies are in the neoclassical zone most of the time and that the Keynesian zone is a distraction. The Keynesian Perspective and The Neoclassical Perspective should help to clarify the underpinnings and consequences of these contrasting views of the macroeconomy.
Economic fluctuations, whether those experienced during the Great Depression of the 1930s, the stagflation of the 1970s, or the Great Recession of 2008–2009, can be explained using the AD/AS diagram. Short-run fluctuations in output occur due to shifts of the SRAS curve, the AD curve, or both. In the case of the housing bubble, rising home values caused the AD curve to shift to the right as more people felt that rising home values increased their overall wealth. Many homeowners took on mortgages that exceeded their ability to pay because, as home values continued to go up, the increased value would pay off any debt outstanding. Increased wealth due to rising home values lead to increased home equity loans and increased spending. All these activities pushed AD to the right, contributing to low unemployment rates and economic growth in the United States. When the housing bubble burst, overall wealth dropped dramatically, wiping out the recent gains. This drop in the value of homes was a demand shock to the U.S. economy because of its impact directly on the wealth of the household sector, and its contagion into the financial that essentially locked up new credit. The AD curve shifted to the left as evidenced by the rising unemployment of the Great Recession.
Understanding the source of these macroeconomic fluctuations provided monetary and fiscal policy makers with insight about what policy actions to take to mitigate the impact of the housing crisis. From a monetary policy perspective, the Federal Reserve lowered short-term interest rates to between 0% and 0.25 %, to loosen up credit throughout the financial system. Discretionary fiscal policy measures included the passage of the Emergency Economic Stabilization Act of 2008 that allowed for the purchase of troubled assets, such as mortgages, from financial institutions and the American Recovery and Reinvestment Act of 2009 that increased government spending on infrastructure, provided for tax cuts, and increased transfer payments. In combination, both monetary and fiscal policy measures were designed to help stimulate aggregate demand in the U.S. economy, pushing the AD curve to the right.
While most economists agree on the usefulness of the AD/AS diagram in analyzing the sources of these fluctuations, there is still some disagreement about the effectiveness of policy decisions that are useful in stabilizing these fluctuations. We discuss the possible policy actions and the differences among economists about their effectiveness in more detail in The Keynesian Perspective, Monetary Policy and Bank Regulation, and Government Budgets and Fiscal Policy.
Key Concepts and Summary
The SRAS curve can be divided into three zones. Keynes’ law says demand creates its own supply, so that changes in aggregate demand cause changes in real GDP and employment. Keynes’ law can be shown on the horizontal Keynesian zone of the aggregate supply curve. The Keynesian zone occurs at the left of the SRAS curve where it is fairly flat, so movements in AD will affect output, but have little effect on the price level. Say’s law says supply creates its own demand. Changes in aggregate demand have no effect on real GDP and employment, only on the price level. Say’s law can be shown on the vertical neoclassical zone of the aggregate supply curve. The neoclassical zone occurs at the right of the SRAS curve where it is fairly vertical, and so movements in AD will affect the price level, but have little impact on output. The intermediate zone in the middle of the SRAS curve is upward-sloping, so a rise in AD will cause higher output and price level, while a fall in AD will lead to a lower output and price level.
If the economy is operating in the neoclassical zone of the SRAS curve and aggregate demand falls, what is likely to happen to real GDP?
Since the SRAS curve is vertical in the neoclassical zone, unless the economy is bordering the intermediate zone, a decrease in AS will cause a decrease in the price level, but no effect on real economic activity (for example, real GDP or employment).
If the economy is operating in the Keynesian zone of the SRAS curve and aggregate demand falls, what is likely to happen to real GDP?
Because the SRAS curve is horizontal in the Keynesian zone, a decrease in AD should depress real economic activity but have no effect on prices.
What is the Keynesian zone of the SRAS curve? How much is the price level likely to change in the Keynesian zone?
What is the neoclassical zone of the SRAS curve? How much is the output level likely to change in the neoclassical zone?
What is the intermediate zone of the SRAS curve? Will a rise in output be accompanied by a rise or a fall in the price level in this zone?
Critical Thinking Questions
Explain why the short-run aggregate supply curve might be fairly flat in the Keynesian zone of the SRAS curve. How might we tell if we are in the Keynesian zone of the AS?
Explain why the short-run aggregate supply curve might be vertical in the neoclassical zone of the SRAS curve. How might we tell if we are in the neoclassical zone of the AS?
Why might it be important for policymakers to know which zone of the SRAS curve the economy is in?
In your view, is the economy currently operating in the Keynesian, intermediate or neoclassical portion of the economy’s aggregate supply curve?
Are Say’s law and Keynes’ law necessarily mutually exclusive?
- intermediate zone
- portion of the SRAS curve where GDP is below potential but not so far below as in the Keynesian zone; the SRAS curve is upward-sloping, but not vertical in the intermediate zone
- Keynesian zone
- portion of the SRAS curve where GDP is far below potential and the SRAS curve is flat
- neoclassical zone
- portion of the SRAS curve where GDP is at or near potential output where the SRAS curve is steep
