1.3 Rates of Change and Behavior of Graphs

Learning Objectives

In this section, you will:

  • Find the average rate of change of a function.
  • Use a graph to determine where a function is increasing, decreasing, or constant.
  • Use a graph to locate local maxima and local minima.
  • Use a graph to locate the absolute maximum and absolute minimum.

Gasoline costs have experienced some wild fluctuations over the last several decades. Table 1[1] lists the average cost, in dollars, of a gallon of gasoline for the years 2005–2012. The cost of gasoline can be considered as a function of year.

Table 1
[latex]y[/latex] 2005 2006 2007 2008 2009 2010 2011 2012
[latex]C\left(y\right)[/latex] 2.31 2.62 2.84 3.30 2.41 2.84 3.58 3.68

If we were interested only in how the gasoline prices changed between 2005 and 2012, we could compute that the cost per gallon had increased from $2.31 to $3.68, an increase of $1.37. While this is interesting, it might be more useful to look at how much the price changed per year. In this section, we will investigate changes such as these.

Finding the Average Rate of Change of a Function

The price change per year is a rate of change because it describes how an output quantity changes relative to the change in the input quantity. We can see that the price of gasoline in Table 1 did not change by the same amount each year, so the rate of change was not constant. If we use only the beginning and ending data, we would be finding the average rate of change over the specified period of time. To find the average rate of change, we divide the change in the output value by the change in the input value.

If we consider the two points [latex]\left({x}_{1}, {y}_{1}\right)[/latex] and [latex]\left({x}_{2}, {y}_{2}\right)[/latex] on the graph of a function [latex]f,[/latex] we can talk about the average rate of change on the interval of input values [latex]\left[{x}_{1}, {x}_{2}\right].[/latex]

[latex]\begin{align*}\text{Average rate of change}&=\frac{\text{Change in output}}{\text{Change in input}}&\text{ } \\ \text{ }&=\frac{{y}_{2}-{y}_{1}}{{x}_{2}-{x}_{1}}\hfill&\text{using coordinates of the point,} \\ \text{ }&=\frac{f\left({x}_{2}\right)-f\left({x}_{1}\right)}{{x}_{2}-{x}_{1}}\hfill&\text{using function notation,}\\ \text{ }&=\frac{\Delta y}{\Delta x}&\text{using delta notation.}\hfill \\\end{align*}[/latex]
[latex]\\[/latex]

The Greek letter [latex]\Delta[/latex] (delta) signifies the change in a quantity; we read the ratio as “delta-y over delta-x” or “the change in [latex]y[/latex] divided by the change in [latex]x.[/latex]” Occasionally we write [latex]\Delta f[/latex] instead of [latex]\Delta y,[/latex] which still represents the change in the function’s output value resulting from a change to its input value. It does not mean we are changing the function into some other function.

You may also see the interval given as [latex]\left[a,b\right].[/latex]  This means that our points would be [latex]\left(a, f\left(a\right)\right)[/latex] and [latex]\left(b, f\left(b\right)\right).[/latex] This would lead to the alternate form for the average rate of change shown below.

[latex]\begin{align*}\text{ Average rate of change }=\frac{f\left(b\right)-f\left(a\right)}{b-a}\end{align*}[/latex]

You should be comfortable working with any of these presentations of the material.

In our example, the gasoline price increased by $1.37 from 2005 to 2012. Over 7 years, the average rate of change was

[latex]\frac{\Delta y}{\Delta x}=\frac{\text{\$}1.37}{\text{7 years}}\approx 0.196\text{ dollars per year}[/latex]
[latex]\\[/latex]

On average, the price of gas increased by about 19.6¢ each year.

Other examples of rates of change include:

  • A population of rats increasing by 40 rats per week
  • A car traveling 68 miles per hour (distance traveled changes by 68 miles each hour as time passes)
  • A car driving 27 miles per gallon (distance traveled changes by 27 miles for each gallon)
  • The current through an electrical circuit increasing by 0.125 amperes for every volt of increased voltage
  • The amount of money in a college account decreasing by $4,000 per quarter

[latex]\\[/latex]

Definition

A rate of change describes how an output quantity changes relative to the change in the input quantity. The units on a rate of change are “output units per input units.”

The average rate of change between two input values is the total change of the function output values [latex]f\left({x}_{1}\right)[/latex] and [latex]f\left({x}_{2}\right)[/latex] divided by the change in the input values [latex]{x}_{1}[/latex] and [latex]{x}_{2}[/latex].

[latex]\frac{\Delta y}{\Delta x}=\frac{f\left({x}_{2}\right)-f\left({x}_{1}\right)}{{x}_{2}-{x}_{1}}[/latex]

How To

Given the value of a function at different points, calculate the average rate of change of a function for the interval between two input values [latex]{x}_{1}[/latex] and [latex]{x}_{2}.[/latex]

  1. Calculate the difference [latex]{y}_{2}-{y}_{1}=\Delta y.[/latex]
  2. Calculate the difference [latex]{x}_{2}-{x}_{1}=\Delta x.[/latex]
  3. Find the ratio [latex]\frac{\Delta y}{\Delta x}.[/latex]

Example 1:  Computing an Average Rate of Change

Using the data in Table 1, find the average rate of change of the price of gasoline between 2007 and 2009.

Try it #1

Using the data in Table 1, find the average rate of change between 2005 and 2010.

Example 2:  Computing Average Rate of Change from a Graph

Given the function [latex]g\left(t\right)[/latex] shown in Figure 1, find the average rate of change on the interval [latex]\left[-1,2\right].[/latex]

Graph of a parabola.

Figure 1

Example 3:  Computing Average Rate of Change from a Table

After picking up a friend who lives 10 miles away, Anna records her distance from home over time. The values are shown in Table 2. Find her average speed over the first 6 hours.

Table 2
t (hours) 0 1 2 3 4 5 6 7
D(t) (miles) 10 55 90 153 214 240 292 300

Example 4:  Computing Average Rate of Change for a Function Expressed as a Formula

Compute the average rate of change of [latex]f\left(x\right)={x}^{2}-\frac{1}{x}[/latex] on the interval [latex]\text{[2,}\text{ }\text{4].}[/latex]

Try it #2

Find the average rate of change of [latex]f\left(x\right)=x-2\sqrt[\leftroot{1}\uproot{2} ]{x}[/latex] on the interval [latex]\left[1,\text{ }9\right].[/latex]

Example 5:  Finding the Average Rate of Change of a Force

The electrostatic force [latex]F,[/latex] measured in newtons, between two charged particles can be related to the distance between the particles [latex]d,[/latex] in centimeters, by the formula [latex]F\left(d\right)=\frac{2}{{d}^{2}}.[/latex] Find the average rate of change of force if the distance between the particles is increased from 2 cm to 6 cm.

Example 6:  Finding an Average Rate of Change as an Expression

Find the average rate of change of [latex]g\left(t\right)={t}^{2}+3t+1[/latex] on the interval [latex]\left[0,\text{ }a\right].[/latex] The answer will be an expression involving [latex]a.[/latex]

Try it #3

Find the average rate of change of [latex]f\left(x\right)={x}^{2}+2x-8[/latex] on the interval [latex]\left[5,\text{ }a\right].[/latex]

Using a Graph to Determine Where a Function is Increasing, Decreasing, or Constant

As part of exploring how functions change, we can identify intervals over which the function is changing in specific ways. We say that a function is increasing on an interval if the function values increase as the input values increase within that interval. Similarly, a function is decreasing on an interval if the function values decrease as the input values increase over that interval.

The average rate of change of an increasing function is positive, and the average rate of change of a decreasing function is negative. Figure 3 shows examples of increasing and decreasing intervals on a function.

Graph of a polynomial that shows the increasing and decreasing intervals and local maximum and minimum.

Figure 3 The function [latex]f\left(x\right)={x}^{3}-12x[/latex] is increasing on [latex]\left(-\infty \text{,}\text{ }-\text{2}\right){{\cup }^{\text{​}}}^{\text{​}}\left(2,\text{ }\infty \right)[/latex] and is decreasing on [latex]\left(-2\text{,}\text{ }2\right).[/latex]

While some functions are increasing (or decreasing) over their entire domain, many others are not. A value of the input where a function changes from increasing to decreasing (as we go from left to right, that is, as the input variable increases) is called a local maximum. If a function has more than one, we say it has local maxima. Similarly, a value of the input where a function changes from decreasing to increasing as the input variable increases is called a local minimum. The plural form is “local minima.” Together, local maxima and minima are called local extrema, or local extreme values, of the function. (The singular form is “extremum.”) Often, the term local is replaced by the term relative. In this text, we will use the term local.

Clearly, a function is neither increasing nor decreasing on an interval where it is constant. A function is also neither increasing nor decreasing at extrema. Note that we have to speak of local extrema, because any given local extremum as defined here is not necessarily the highest maximum or lowest minimum in the function’s entire domain.

For the function whose graph is shown in Figure 4, the local maximum occurs when [latex]x=-2[/latex]  The maximum value is the output value of 16.  The local minimum occurs when [latex]x=2[/latex] .  The minimum value is the output value of [latex]-16[/latex]

The graph shows a curve going up until (-2, 16) and then goes down until (2, -16) and then goes up after that.

Figure 4

To locate the local maxima and minima from a graph, we need to observe the graph to determine where the graph attains its highest and lowest points, respectively, within an open interval. Like the summit of a roller coaster, the graph of a function is higher at a local maximum than at nearby points on both sides. The graph will also be lower at a local minimum than at neighboring points. Figure 5 illustrates these ideas for a local maximum.

Graph of a polynomial that shows the increasing and decreasing intervals and local maximum.

Figure 5 Definition of a local maximum

These observations lead us to a formal definition of local extrema.

Definition

A function [latex]f[/latex] is an increasing function on an open interval if [latex]f\left(b\right)>f\left(a\right)[/latex] for every two input values [latex]a[/latex] and [latex]b[/latex] in the interval where [latex]b>a.[/latex]

A function [latex]f[/latex] is a decreasing function on an open interval if [latex]f\left(b\right)<f\left(a\right)[/latex] for every two input values [latex]a[/latex] and [latex]b[/latex] in the interval where [latex]b>a.[/latex]

A function [latex]f[/latex] has a local maximum at a point [latex]b[/latex] in an open interval [latex]\left(a,c\right)[/latex] if [latex]f\left(b\right)[/latex] is greater than or equal to [latex]f\left(x\right)[/latex] for every point [latex]x[/latex] ([latex]x[/latex] does not equal [latex]b[/latex]) in the interval. Likewise, [latex]f[/latex] has a local minimum at a point [latex]b[/latex] in [latex]\left(a,c\right)[/latex] if [latex]f\left(b\right)[/latex] is less than or equal to [latex]f\left(x\right)[/latex] for every [latex]x[/latex] ([latex]x[/latex] does not equal [latex]b[/latex]) in the interval.

Example 7:  Finding Increasing and Decreasing Intervals on a Graph

Given the function [latex]p\left(t\right)[/latex] in Figure 6, identify the intervals on which the function appears to be increasing and decreasing.

Graph of a polynomial.

Figure 6

Example 8:  Finding Local Extrema from a Graph

Use technology to graph the function [latex]f\left(x\right)=\frac{2}{x}+\frac{x}{3}.[/latex] Then use features of your graphing utility to estimate the local extrema of the function and to determine the intervals on which the function is increasing.

Try it #4

Use technology to graph the function [latex]f\left(x\right)={x}^{3}-6{x}^{2}-15x+20[/latex] and to estimate the local extrema of the function. Use these to determine the intervals on which the function is increasing and decreasing.

Example 9:  Finding Local Maxima and Minima from a Graph

For the function [latex]f[/latex] whose graph is shown in Figure 9, find all local maxima and minima.

Graph of a polynomial.

Figure 9

Analyzing the Toolkit Functions for Increasing or Decreasing Intervals

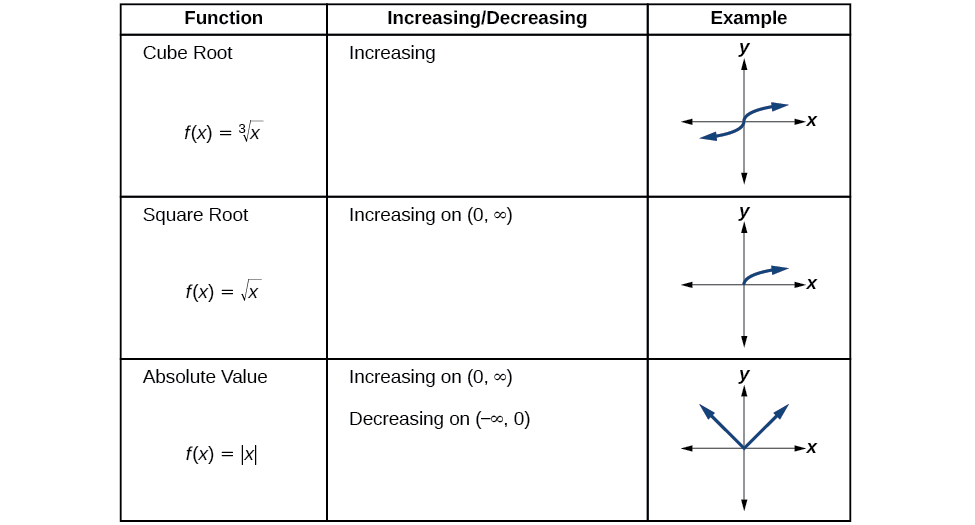

We will now return to our toolkit functions and discuss their graphical behavior in Figure 10, Figure 11, and Figure 12.

Table showing the increasing and decreasing intervals of the toolkit functions.

Figure 10



Table showing the increasing and decreasing intervals of the toolkit functions.

Figure 11

Table showing the increasing and decreasing intervals of the toolkit functions.

Figure 12

Use A Graph to Locate the Absolute Maximum and Absolute Minimum (Optional)

There is a difference between locating the highest and lowest points on a graph in a region around an open interval (locally) and locating the highest and lowest points on the graph for the entire domain. The [latex]y\text{-}[/latex]coordinates (output) at the highest and lowest points are called the absolute maximum and absolute minimum, respectively.

To locate absolute maxima and minima from a graph, we need to observe the graph to determine where the graph attains it highest and lowest points on the domain of the function. See Figure 13.

Graph of a segment of a parabola with an absolute minimum at (0, -2) and absolute maximum at (2, 2).

Figure 13

Not every function has an absolute maximum or minimum value. The toolkit function [latex]f\left(x\right)={x}^{3}[/latex] is one such function.

Definition

The absolute maximum of [latex]f[/latex] at [latex]x=c[/latex] is [latex]f\left(c\right)[/latex] where [latex]f\left(c\right)\ge f\left(x\right)[/latex] for all [latex]x[/latex] in the domain of [latex]f.[/latex]

The absolute minimum of [latex]f[/latex] at [latex]x=d[/latex] is [latex]f\left(d\right)[/latex] where [latex]f\left(d\right)\le f\left(x\right)[/latex] for all [latex]x[/latex] in the domain of [latex]f.[/latex]

Example 10:  Finding Absolute Maxima and Minima from a Graph

For the function [latex]f[/latex] shown in Figure 14, find all absolute maxima and minima.

Graph of a polynomial.

Figure 14

Access this online resource for additional instruction and practice with rates of change.

Key Equations

Average rate of change [latex]\frac{\Delta y}{\Delta x}=\frac{f\left({x}_{2}\right)-f\left({x}_{1}\right)}{{x}_{2}-{x}_{1}}[/latex]

Key Concepts

  • A rate of change relates a change in an output quantity to a change in an input quantity. The average rate of change is determined using only the beginning and ending data over an interval.
  • Identifying points that mark the interval on a graph can be used to find the average rate of change.
  • Comparing pairs of input and output values in a table can also be used to find the average rate of change.
  • An average rate of change can also be computed by determining the function values at the endpoints of an interval described by a formula.
  • The average rate of change can sometimes be determined as an expression.
  • A function is increasing where its rate of change is positive and decreasing where its rate of change is negative.
  • A local maximum is where a function changes from increasing to decreasing and has an output value larger (more positive or less negative) than output values at neighboring input values.
  • A local minimum is where the function changes from decreasing to increasing (as the input increases) and has an output value smaller (more negative or less positive) than output values at neighboring input values.
  • Minima and maxima are also called extrema.
  • We can find local extrema from a graph.
  • The highest and lowest points on a graph indicate the absolute maxima and minima.

Glossary

absolute maximum
the greatest value of a function over an interval
absolute minimum
the lowest value of a function over an interval
average rate of change
the difference in the output values of a function found for two values of the input divided by the difference between the inputs
decreasing function
a function is decreasing in some open interval if [latex]f\left(b\right)<f\left(a\right)[/latex] for any two input values  [latex]a[/latex] and [latex]b[/latex] in the given interval where [latex]b>a[/latex]
increasing function
a function is increasing in some open interval if [latex]f\left(b\right)>f\left(a\right)[/latex] for any two input values [latex]a[/latex] and [latex]b[/latex] in the given interval where [latex]b>a[/latex]
local extrema
collectively, all of a function’s local maxima and minima
local maximum
a value of the input where a function changes from increasing to decreasing as the input value increases.
local minimum
a value of the input where a function changes from decreasing to increasing as the input value increases.
rate of change
the change of an output quantity relative to the change of the input quantity
